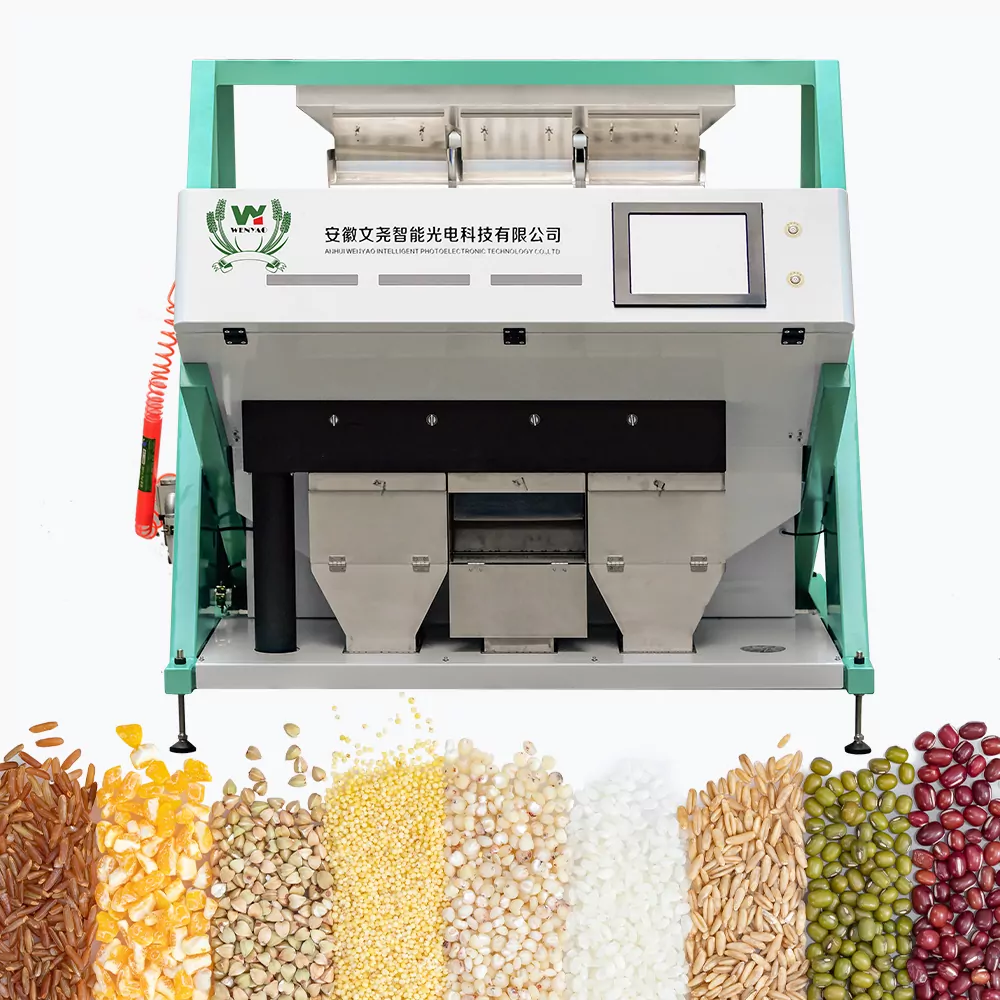

Wenyao 3 chute color sorter

Working Principle of 3 Chutes Color Sorting Machine
This 3-chute color sorter employs a precise mechanical and optical system to achieve superior sorting results. The machine begins its operation by receiving materials into its feed hopper, where it utilizes an integrated vibrator to ensure uniform distribution across all three chutes. As the machine processes these materials, it guides them through a controlled falling trajectory while scanning each particle using high-precision CCD sensors. The machine continuously analyzes the optical signals in real-time, comparing them against programmed quality parameters. When the sorter detects unqualified materials or impurities, it immediately triggers its high-speed pneumatic ejectors, delivering precisely timed bursts of air. Our device effectively diverts these unwanted elements into a separate rejection hopper while allowing acceptable products to continue through the sorting process undisturbed. It maintains consistent performance throughout extended operation periods, providing reliable quality control with maximum efficiency across diverse material sorting applications.

Technical Parameters

Easy to operate touch screen with Espanish,German,Russian and more than 20 languages

5400 pixel ccd image acquisition system with high speed chip
The semiconductor imaging device has the advantages of high sensitivity,anti-glare, small distortion,small size, long life, anti-vibration and so on.
Automatic computing and intelligent identification with high speed camera.

Self design high ejectors-
It means high speed and accurate sorting performance
Core patent, starting frequency >1200 times/sec regular maintenance.
The service life of the spray valve can match the lifetime use needs

Intelligent dust cleaning system
This means you can set the cleaning time and period according to your needs.

Low temperature led light source system
Cooling system to make the led lamp more long life

Wifi remote control system
It means color sorter connecting to the internet,you can use mobile phone or computer to operate color sorter.

One device can be used in various scenarios. Set the device according to different materials.
